Width77.0mm
Depth9.0mm
Height150.1mm
Weight158g
Battery3350mAh (Typical value)

Capacity

16GB
32GB
64GB

Color

Gray
Glod
whiteblack
Silver

Rear Camera

20.7 megapixel
Sony IMX220 Exmor RS series sensor
4x digital zoom, 300° panoramic lens
Blue glass filter
Sapphire crystal protective lens
5-element lens, ƒ/2.2
30 photos per second, 0.3s AF motor

Front Camera

OV5693, 5 megapixel
4-element lens
Blue glass optical filter
ƒ/2.2
84.4° wide angle lens
FotoNation selfie enhancement algorithm
Face AE light boost technology

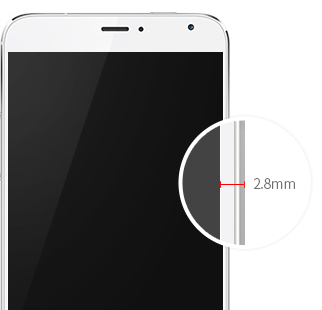

Display

Dimensions
JDI 5.5-inch
Resolution
2560 x 1536
(Better than normal 2K)
Contrast ratio
1500 : 1
PPI
546
Brightness
450cd/m², brightness 2,048 level adjustable
Material
Corning^® Gorilla^® Glass 3
Display technology
NEGA negative LCD panel
Manufacturing technology
OGS

Processor and RAM

Exynos 5430 processor
ARM^® cortex^®-A15™ 2.0GHz x 4 + ARM^® cortex^®-A7™ 1.5GHz x 4
ARM^® big.LITTLE^™
20nm HKMG
Mali T628 MP6/600MHz GPU
3GB dual-channel LPDDR3 RAM
Four-channel ISP chip, 5Gbps
Second-generation Sensor Hub
NXP Smart PA Chip
NXP PN65T NFC Chip

mTouch

Surface material
Sapphire glass
Metal ring
Stainless steel
Response speed
0.5s
Identification angle
360°
Sensor
Capacitive touch sensor
Number of fingerprint modules
Five

Hi-Fi

ESS ES9018K2M
TI OPA1612
Passive filter technology

Ceramic film capacitor
High-precision low-temperature-drift resistor
Whole symmetrical circuit design

Network Type

TD-LTE / FDD-LTE / TD-SCDMA / WCDMA / GSM

WLAN

802.11 ac/n/g/b/a Wi-Fi
Supports dual-band Wi-Fi (2.4GHz/5GHz)

Bluetooth

Bluetooth 4.0
Supports BLE

Sensors

Ambient Sensor, Hall Effect sensor, gravity sensor,
infrared proximity sensor, gyroscope, ambient light sensor,
touch sensitive, digital compass

Positioning

A-GPS, Inertial navigation, Digital compass
QZSS
GNSS (GPS, GLONASS, BDS)
SBAS (WAAS、EGNOS、MSAS、GAGAN)

Video

MP4, 3GP, MOV, MKV, AVI,
FLV, MPEG


JPEG, PNG, GIF, BMP

Audio

FLAC, APE, AAC, MKA, OGG,
MIDI, M4A, AMR
